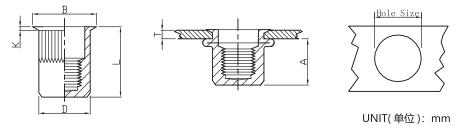

螺紋 Thread |
編號
P/N
|
T(GRIP RANGE) Min Max |
A Rer |
Hole Size ﹢0.1 0 |
D | B | K | L |
| M4 | RH-KBC-0420 | 0.5-2.0 | 11.0 | 6.0 | 5.9 | 7.0 | 0.5 | 15.0 |
| RH-KBC-0435 | 2.0-3.5 | 16.5 | ||||||
| M5 | RH-KBC-0520 | 0.5-2.0 | 12.5 | 7.0 | 6.9 | 8.0 | 0.5 | 16.5 |
| RH-KBC-0535 | 2.0-3.5 | 18.0 | ||||||
| M6 | RH-KBC-0630 | 0.5-3.0 | 15.5 | 9.0 | 8.9 | 10.0 | 0.6 | 20.5 |
| RH-KBC-0645 | 3.0-4.5 | 22.0 | ||||||
| M8 | RH-KBC-0830 | 0.5-3.0 | 17.0 | 11.0 | 10.9 | 12.0 | 0.65 | 23.0 |
| RH-KBC-0845 | 3.0-4.5 | 24.5 | ||||||
| M10 | RH-KBC-1030 | 1.0-3.0 | 18.2 | 13.0 | 12.9 | 14.0 | 0.7 | 24.5 |
| RH-KBC-1050 | 3.0-5.0 | 26.0 | ||||||
| M12 | RH-KBC-1240 | 1.0-4.0 | 20.0 | 16.0 | 15.9 | 17.6 | 0.8 | 29.0 |
| RH-RBC-1260 | 3.5-6.0 | 32.0 |
