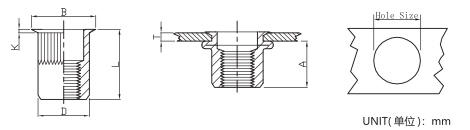

螺紋 Thread |
編號
P/N
|
T(GRIP RANGE) Min Max |
A Rer |
Hole Size ﹢0.1 0 |
D | B | K | L |
| M3 | RH-KB-0320 | 0.5-2.0 | 6.2 | 5.0 | 4.9 | 6.0 | 0.5 | 9.0 |
| RH-KB-0335 | 1.5-3.0 | 11.5 | ||||||
| M4 | RH-KB-0420 | 0.5-2.0 | 7.0 | 6.0 | 5.9 | 7.0 | 0.5 | 11.2 |
| RH-KB-0440 | 2.0-4.0 | 13.0 | ||||||
| M5 | RH-KB-0520 | 0.5-2.0 | 7.0 | 7.0 | 6.9 | 8.0 | 0.5 | 11.5 |
| RH-KB-0540 | 2.0-4.0 | 13.0 | ||||||
| M6 | RH-KB-0625 | 0.5-2.5 | 8.5 | 9.0 | 8.9 | 10.0 | 0.6 | 14.0 |
| RH-KB-0650 | 2.5-5.0 | 16.0 | ||||||
| M8 | RH-KB-0830 | 0.5-3.0 | 10.0 | 11.0 | 10.9 | 12.0 | 0.65 | 16.5 |
| RH-KB-0850 | 3.0-5.0 | 18.5 | ||||||
| M10 | RH-KB-1035 | 1.0-3.5 | 12.5 | 13.0 | 12.9 | 14.0 | 0.7 | 19.5 |
| RH-KB-1060 | 3.5-6.0 | 22.0 | ||||||
| M10 | RH-KB-1035(12H) | 1.0-3.5 | 12.5 | 12.0 | 11.9 | 13.0 | 0.7 | 19.5 |
| RH-KB-1060(12H) | 3.5-5.5 | 22.0 | ||||||
| M12 | RH-KB-1240 | 1.0-4.0 | 16.2 | 16.0 | 15.9 | 17.6 | 0.75 | 24.2 |
| RH-KB-1260 | 4.0-6.5 | 0.8 | 27.5 | |||||
| M12 | RH-KB-1235 | 0.5-3.5 | 15.2 | 15.0 | 14.9 | 16.5 | 0.8 | 22.5 |
