螺紋 Thread |
編號
P/N
|

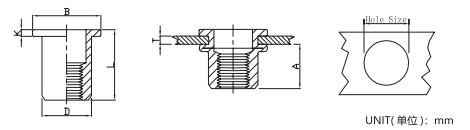

T(GRIP RANGE) Min Max |
A Rer |
Hole Size ﹢0.1 0 |
D | B | K | L |
| M3 | FH-RB-0315 | 0.5-1.5 | 4.7 | 5.0 | 4.9 | 7.2 | 0.8 | 8.5 |
| FH-RB-0325 | 1.5-2.5 | 9.5 | ||||||
| M4 | FH-RB-0420 | 0.5-2.0 | 6.0 | 6.0 | 5.9 | 8.5 | 0.8 | 10.5 |
| FH-RB-0435 | 2.0-3.5 | 12.0 | ||||||
| M5 | FH-RB-0525 | 0.5-2.5 | 7.5 | 7.0 | 6.9 | 10.0 | 1.0 | 13.0 |
| FH-RB-0550 | 2.5-5.0 | 8.5 | 17.0 | |||||
| M6 | FH-RB-0630 | 0.5-3.0 | 9.2 | 9.0 | 8.9 | 12.3 | 1.3 | 15.5 |
| FH-RB-0655 | 3.0-5.5 | 18.0 | ||||||
| M8 | FH-RB-0835 | 0.5-3.5 | 11.5 | 11.0 | 10.9 | 15.0 | 1.5 | 18.5 |
| FH-RB-0860 | 3.5-6.0 | 21.0 | ||||||
| M10 | FH-RB-1025 | 0.5-2.5 | 11.5 | 13.0 | 12.9 | 16.3 | 1.5 | 17.0 |
| M10 | FH-RB-1040 | 2.5-4.0 | 12.5 | 13.0 | 12.9 | 17.0 | 1.6 | 21.0 |
| FH-RB-1060 | 4.0-6.0 | 24.0 | ||||||
| M10 | FH-RB-1035(12H) | 1.0-3.5 | 11.0 | 12.0 | 11.9 | 16.0 | 1.6 | 19.0 |
| M12 | FH-RB-1240 | 1.0-4.0 | 13.5 | 15.0 | 14.9 | 18.0 | 1.7 | 22.0 |
| FH-RB-1265 | 4.0-6.5 | 25.0 | ||||||
| M12 | FH-RB-1240(16H) | 1.0-4.0 | 16.0 | 16.0 | 15.9 | 22.0 | 2.0 | 25.0 |
| M16 | FH-RB-16 | 2.5-5.0 | 20.0 | 21.0 | 20.9 | 26.0 | 2.5 | 33.0 |
